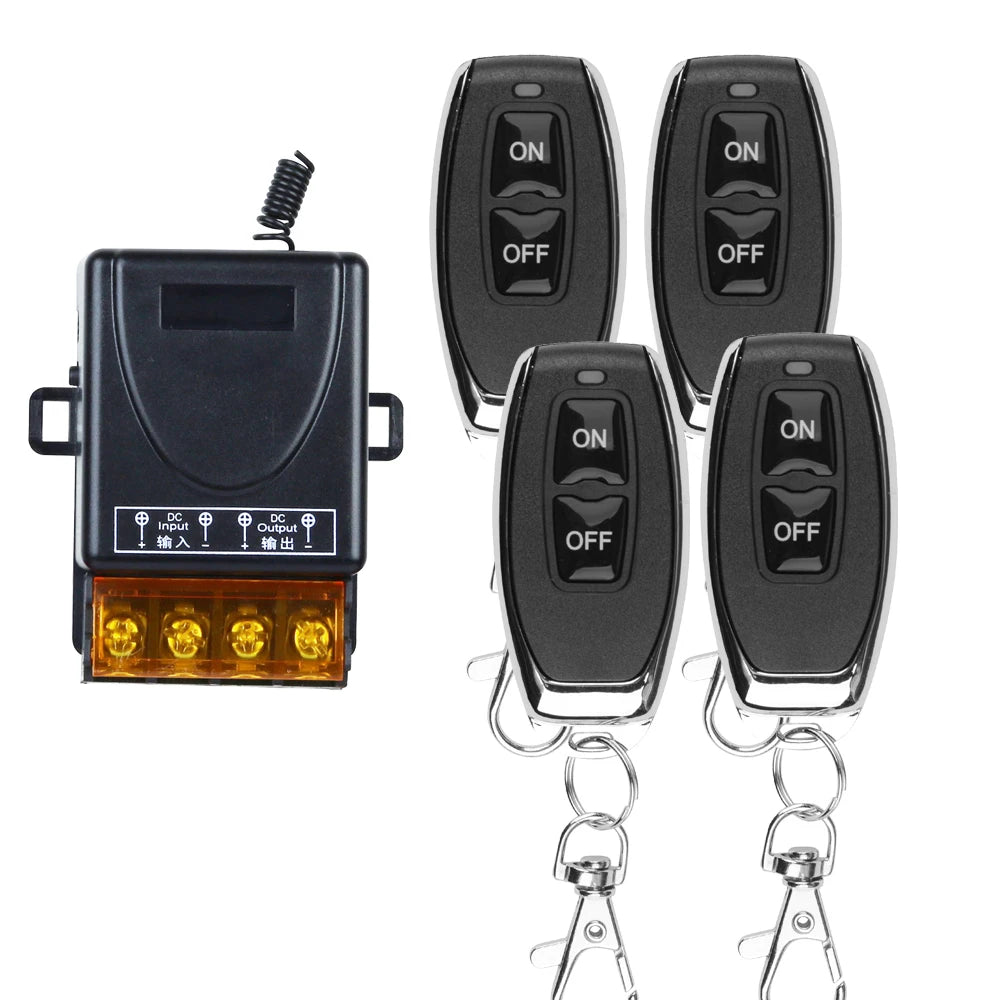

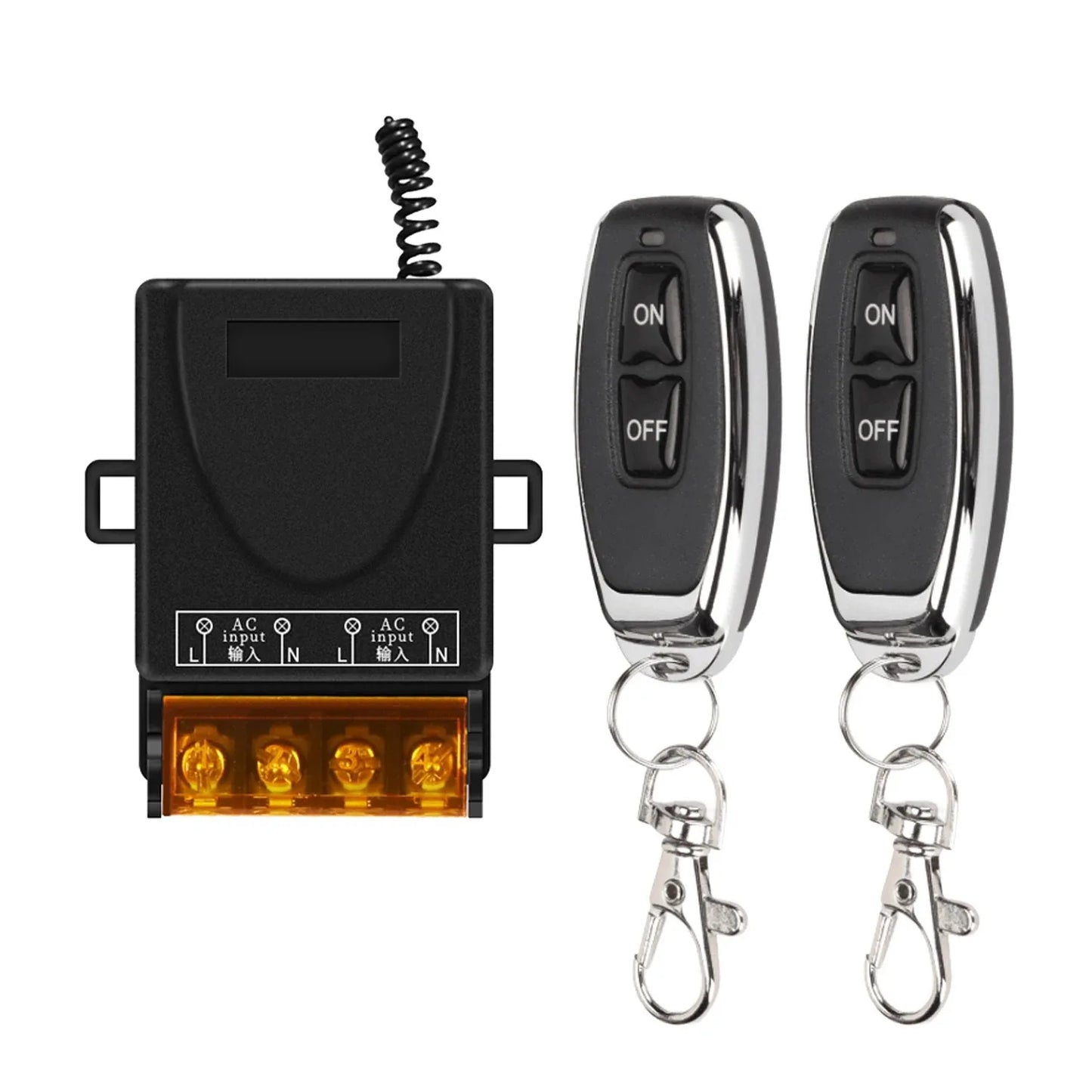

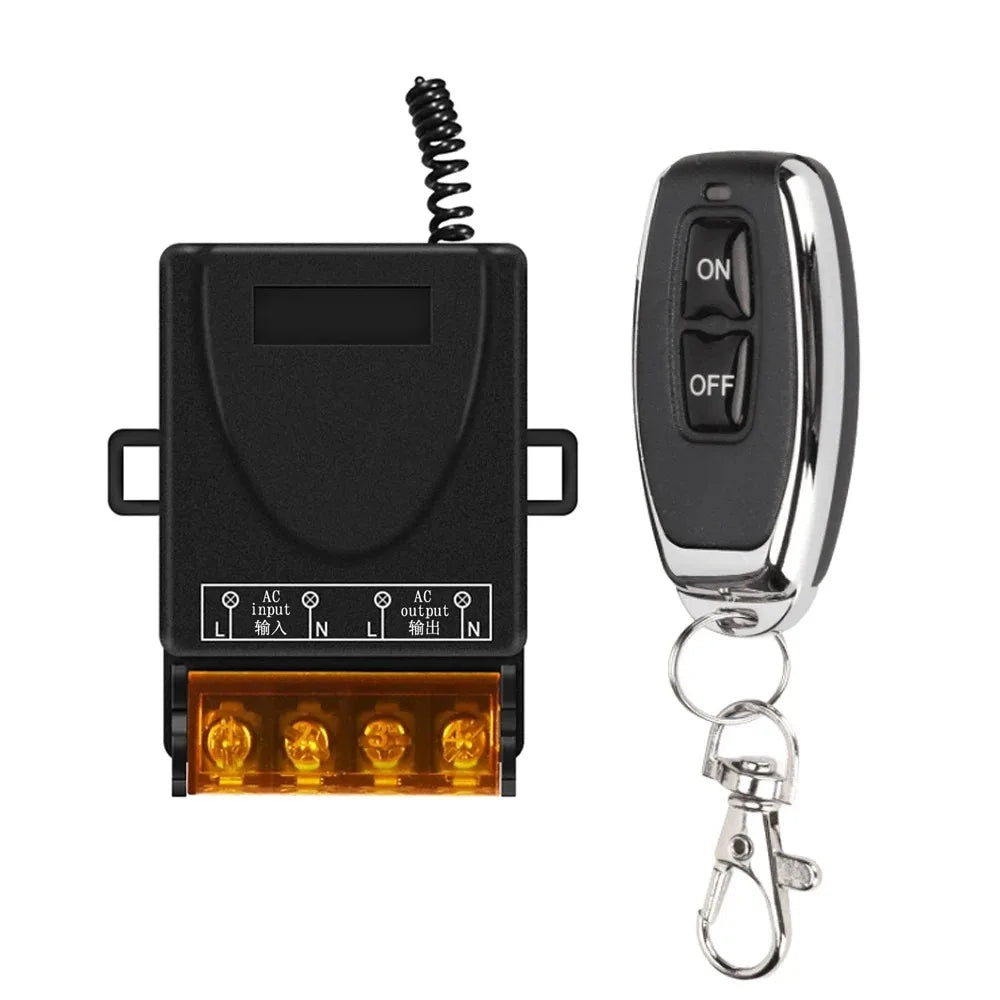

433Mhz Wireless Remote Control Switch AC 110V 220V 30A Relay 1CH Receiver Controller and 2botton RF 433 Mhz Transmitter
433Mhz Wireless Remote Control Switch AC 110V 220V 30A Relay 1CH Receiver Controller and 2botton RF 433 Mhz Transmitter
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: other
Certification: CE
Channel: 1
Choice: yes
Frequency: 433 MHz
Hign-concerned Chemical: None
Origin: Mainland China
Package: Yes
Support APP: No
Use: Universal,SWITCH,Lighting,Electric Door,Automated curtains
Wireless Communication: RF

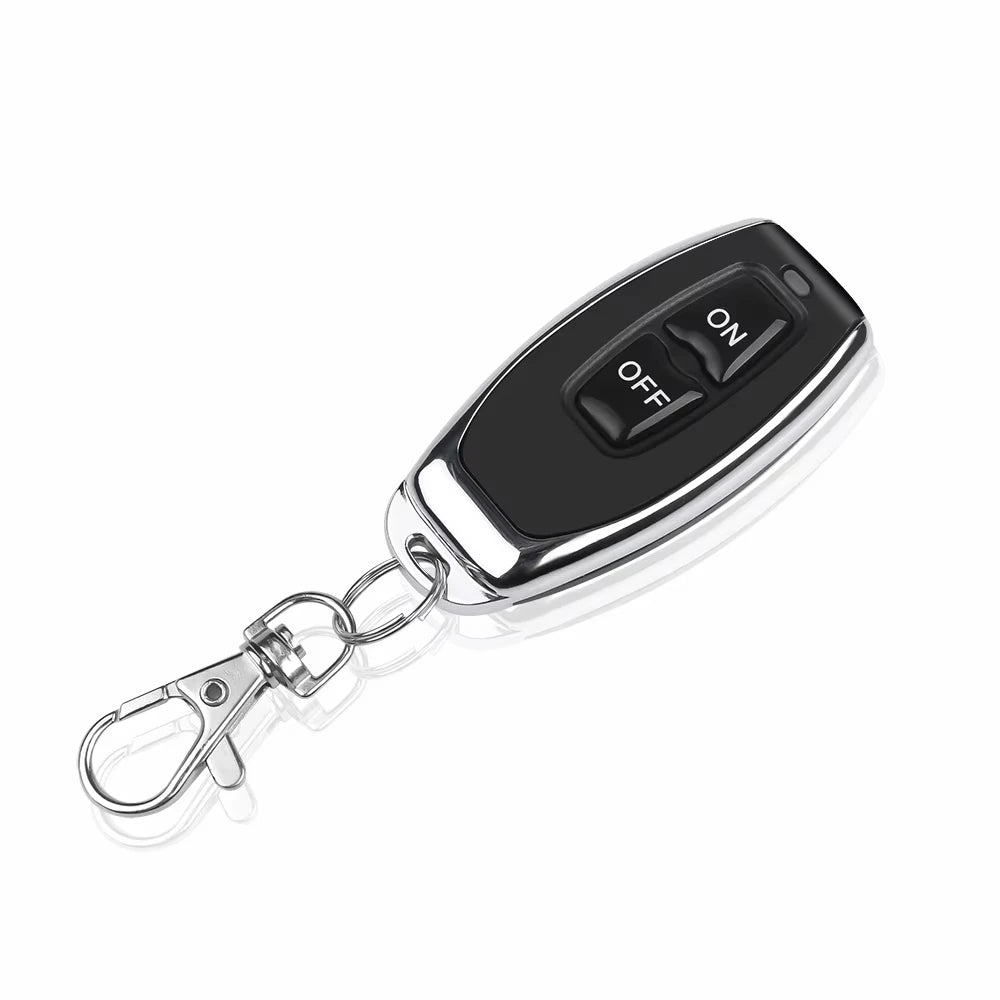

Remote control Transmitter
Operating voltage: DC12V (23A/12V battery x1)
Transmitting frequency: 433MHz
Encoding Type: Fixed code
Receiver sensitivity: > -105dB
Transmission distance : 100M (Open field)
Size: approx 55*28*10mm

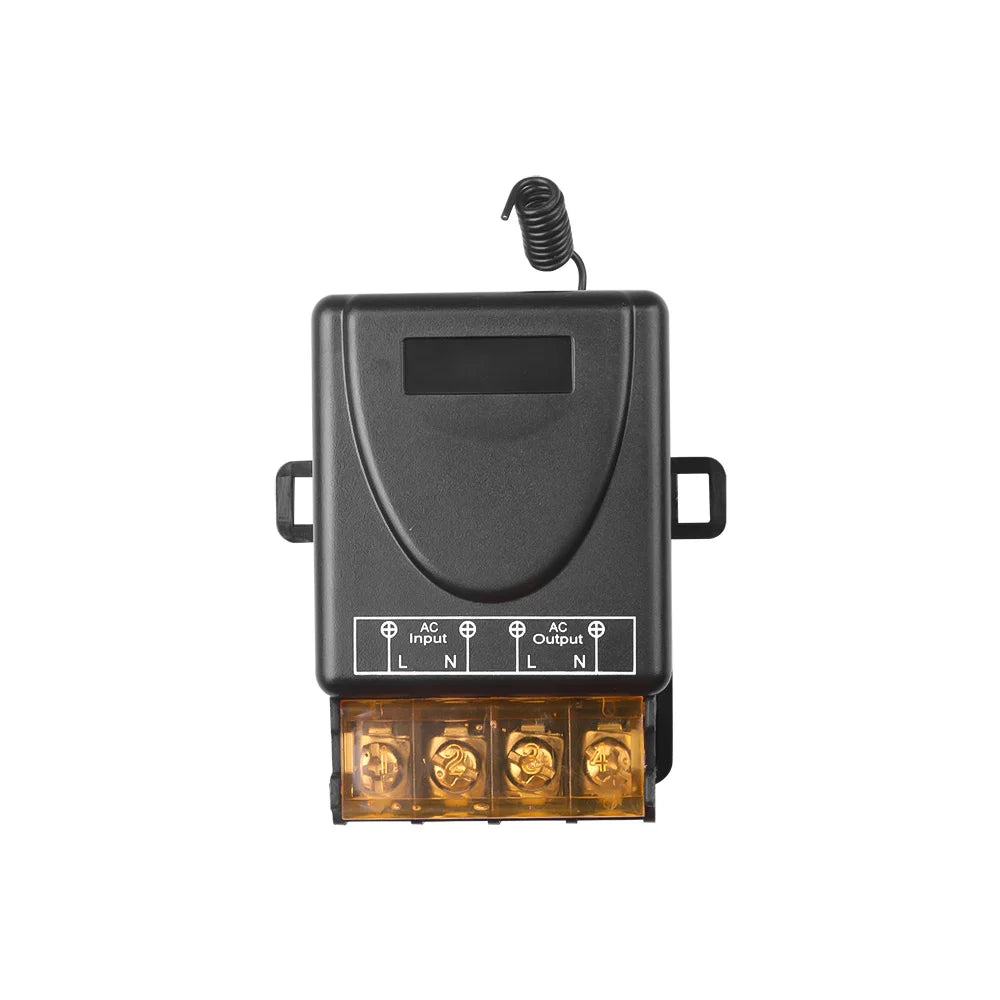

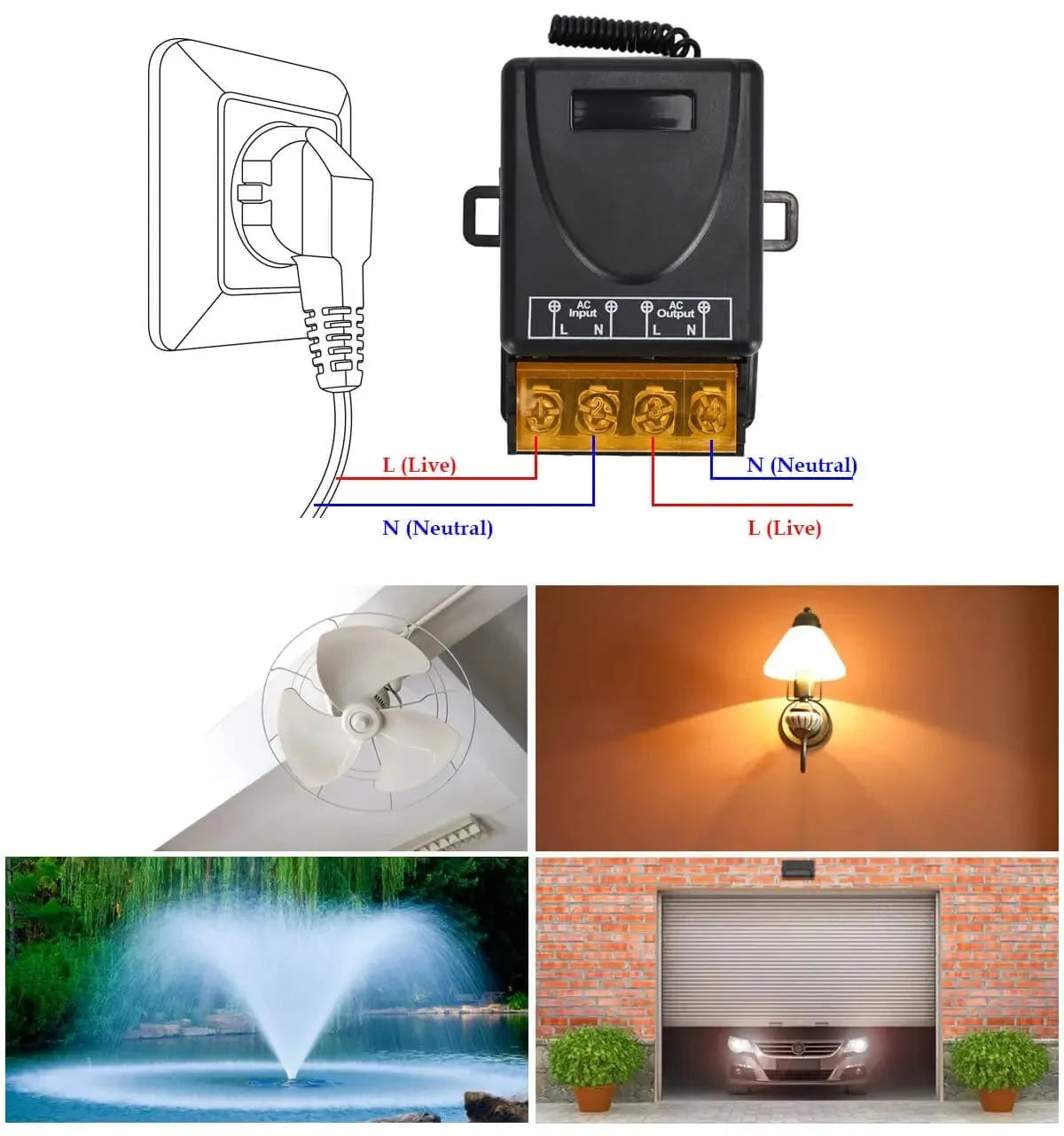

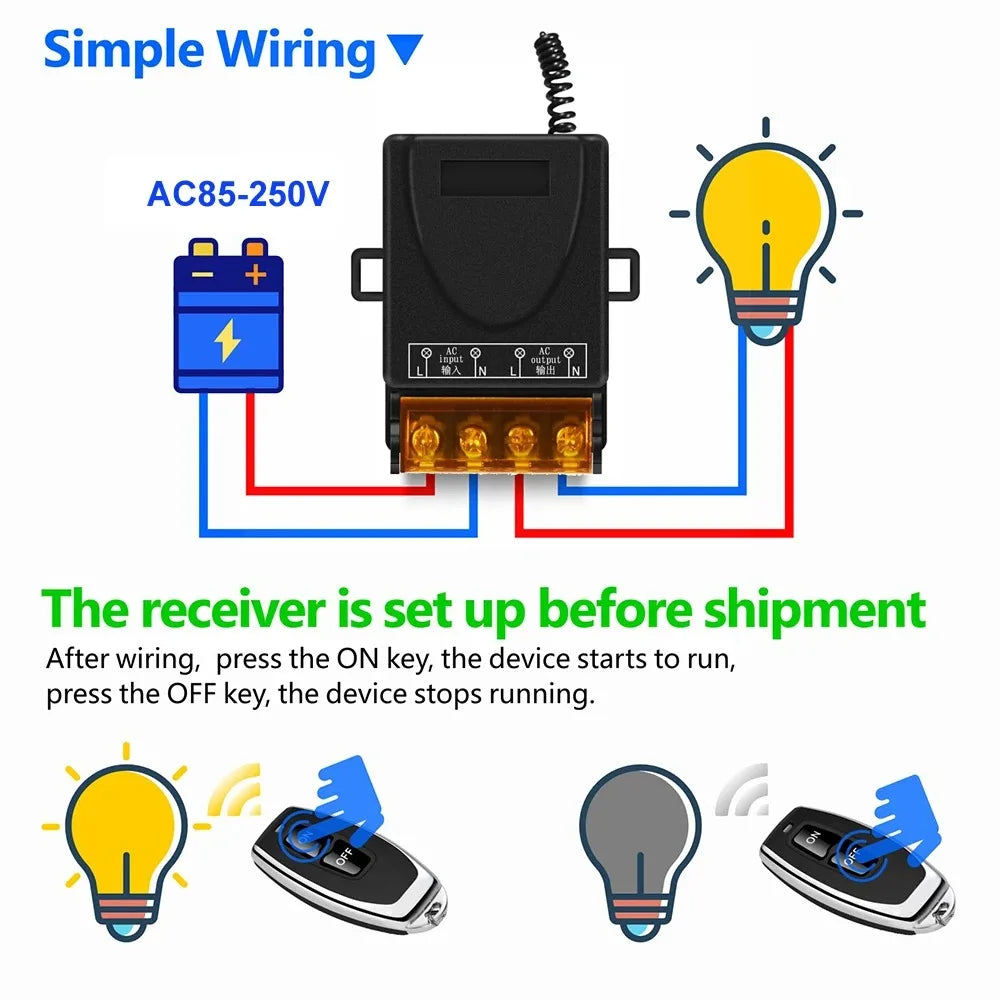

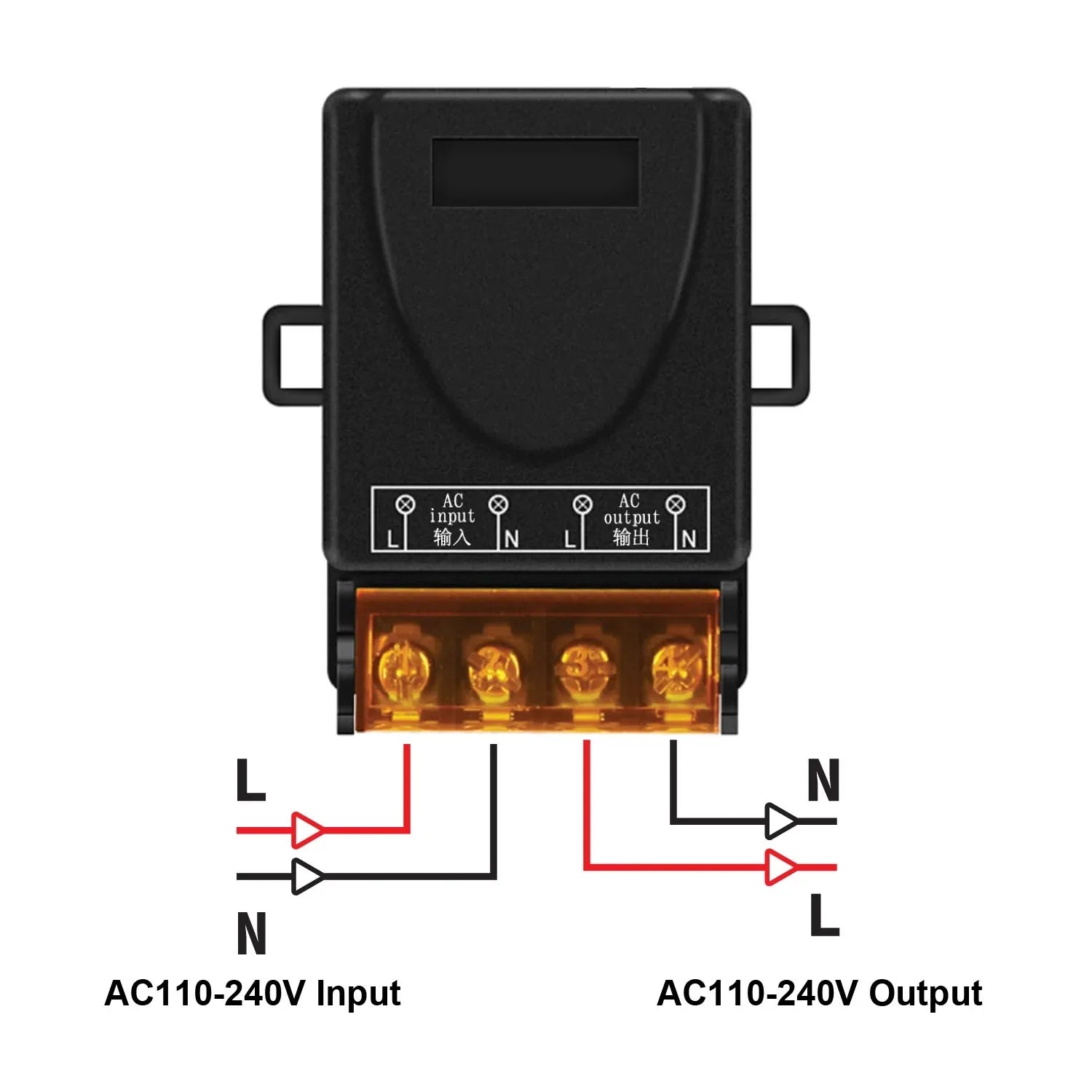

Operating voltage: AC 110V - 240V
Output voltage = Operating voltage
Operating frequency: 433MHz(Same with Remote control)
Encoding Type: learning code
Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A)

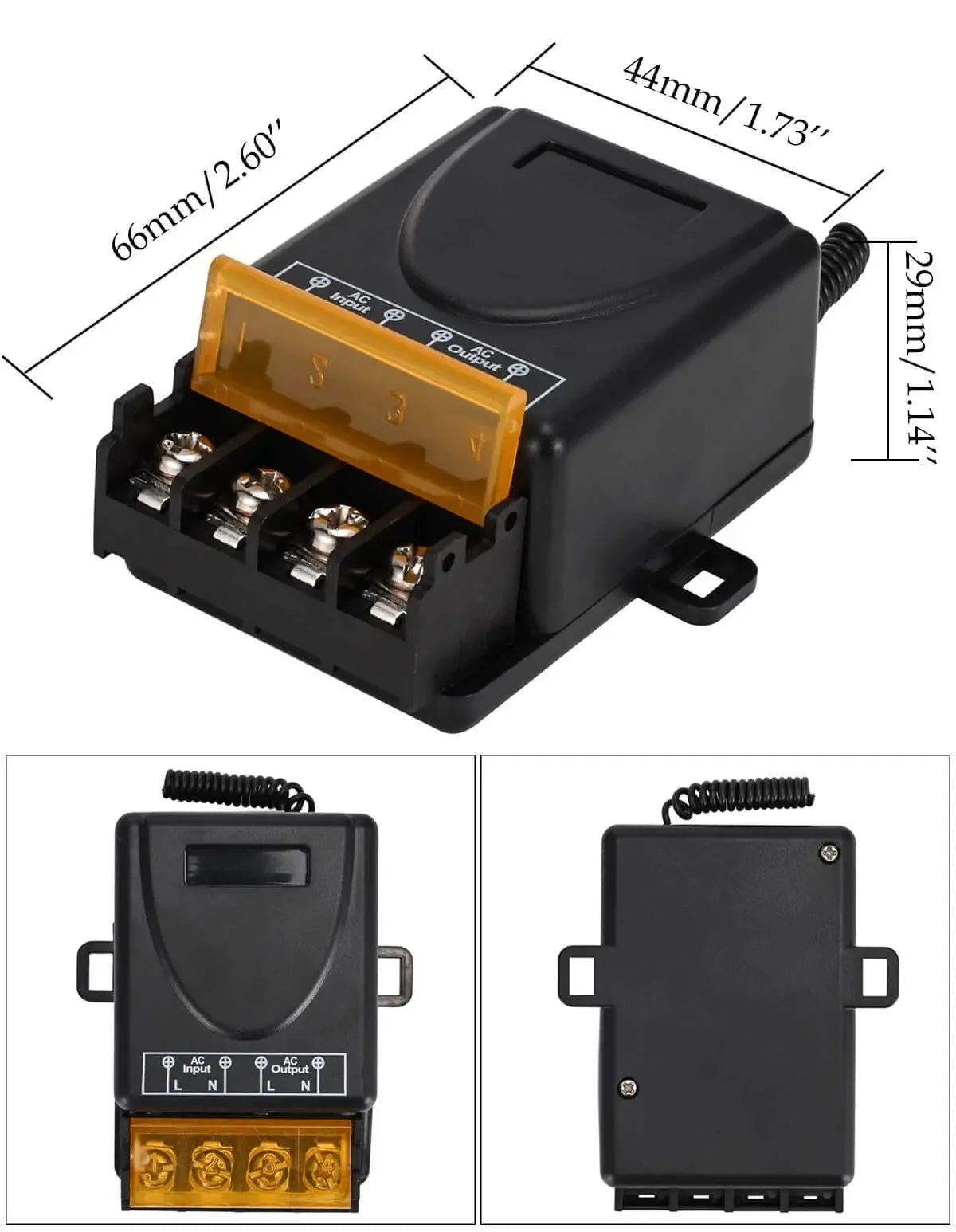

Box size: Approx 65x45x28m
About Working way:
Momentary: Relay: Press and hold -> On; Release -> Off.
Toggle: Relay: Press -> On; Press same button again -> Off·
Latched: Relay: Press -> On; Press other button -> Off.
Delay time :
Press remote control button, the corresponding relay actuates and keeps working until the time out.

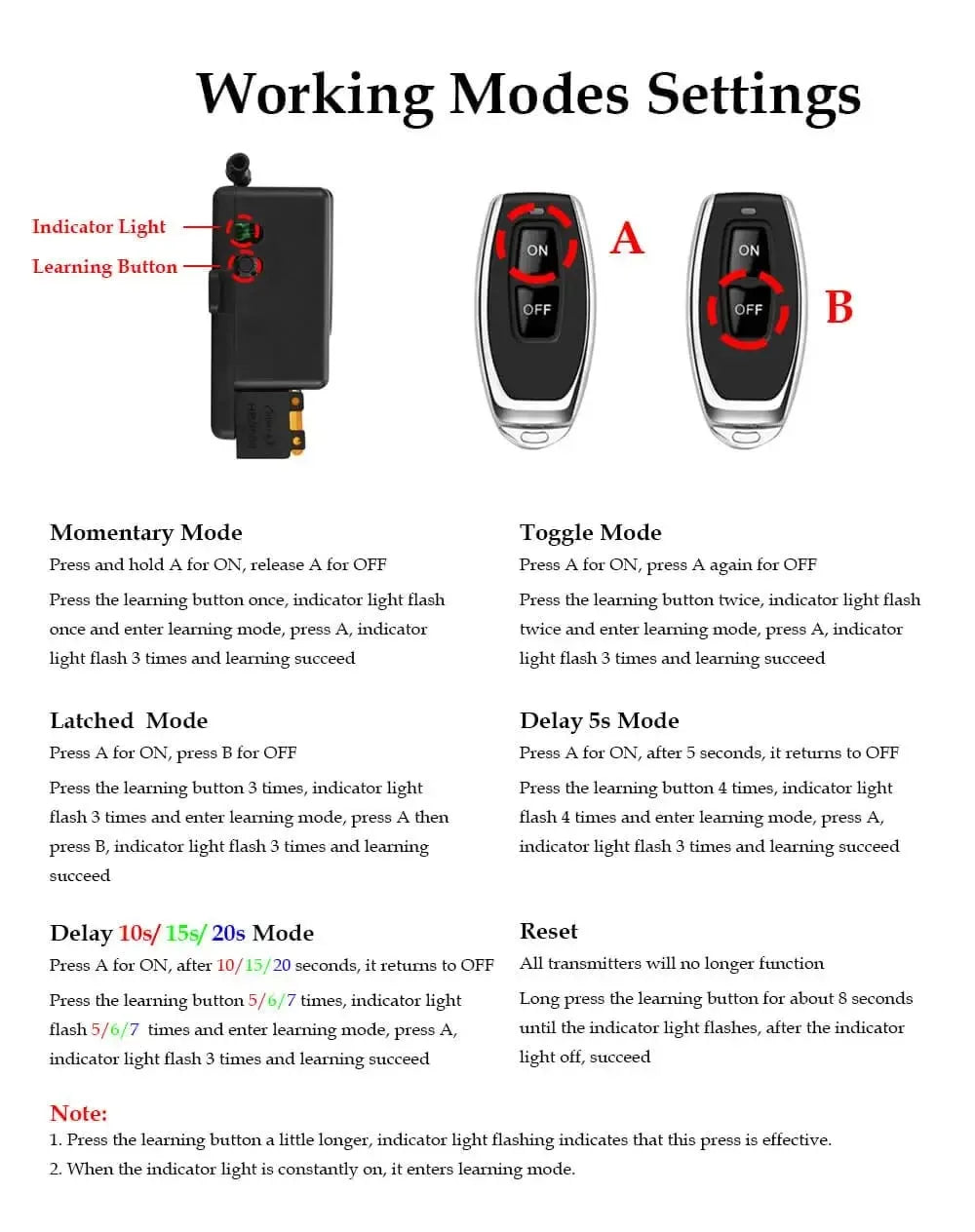

About Learning and clearing Method:
Input 12V for the Receiver ,

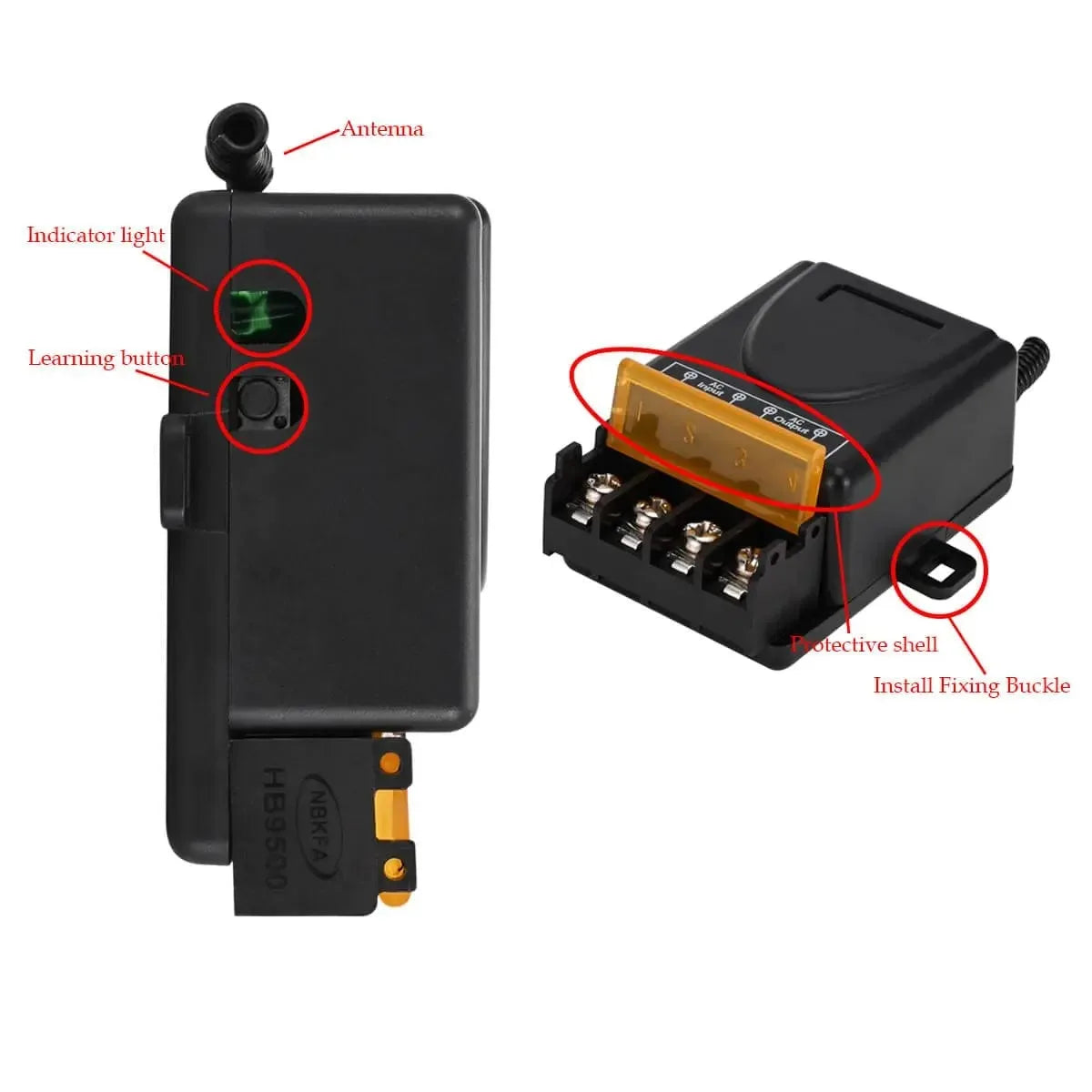

Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
